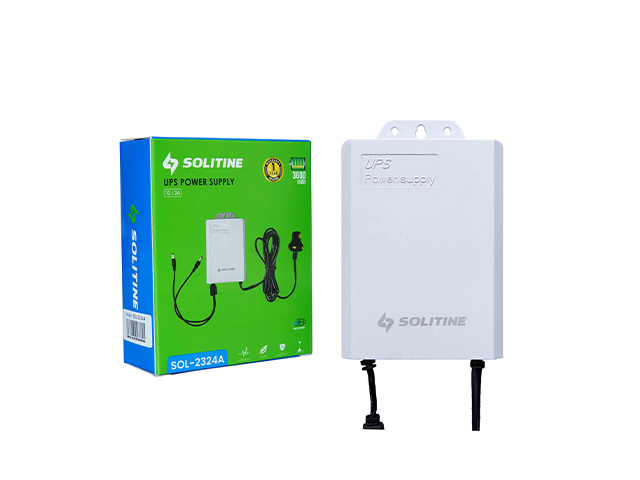

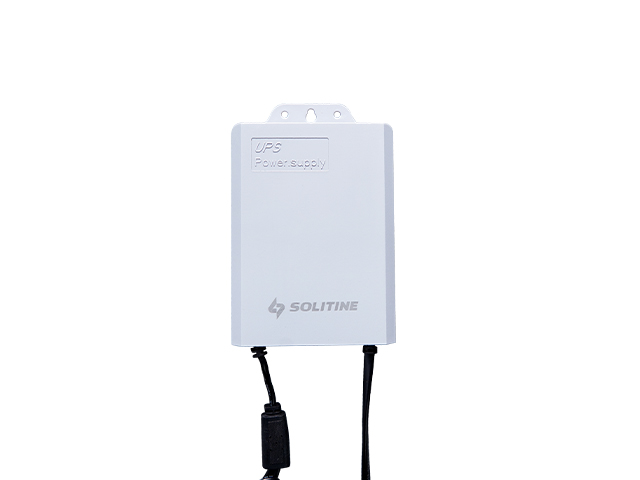

Solitine SOL-2324A 12V2A UPS Uninterrupted power Supply

UPS In Stock

Product Highlights

4 Features
3600mAh 18650 Li-ion battery with up to 5 hours backup (Router + ONU)
Stable DC 12V/2A output + Type-C USB PD support
Overload, short-circuit, overcharge & over-discharge protection
Compact design with LED indicators & 1 Year Warranty

General

2 Specs
UPS Type Smart Mini DC UPS (Lithium Battery Backup)
Color White

Power

8 Specs
Capacity 3600mAh
Rated Power 24W Max (12V/2A)
Input Voltage 110V–240V AC, 50/60Hz 0.5A
Output Voltage DC 12V / 2A
Output Frequency Pass-through
Waveform Type Pure DC Output
Transfer Time Instantaneous (0 ms – Seamless switch)
Efficiency High efficiency

Battery

5 Specs
Battery Type 18650 Lithium-ion
Battery Capacity 3600mAh
Battery Quantity Integrated (non-removable)
Backup Time Up to 5 hours (1× ONU + 1× Router); 3–3.5 hours (Router + ONU + Camera)
Battery Voltage 3.7V nominal (system converted)

Interface

7 Specs
AC Output Port None (DC UPS)
DC Output Port DC 12V / 2A interface
USB Port Type-C USB PD (5V/3A, 9V/2A, 12V/1.67A)
PoE Output No
Connector Type DC ports + Type-C
LED Indicator Yes (LED status indicators for battery level)
Power Button Yes

Protection

5 Specs
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes
Overheat Protection Yes (Air cooling system)

Features

5 Specs
Auto Restart Yes
Cold Start Yes
AVR Support Not applicable (DC UPS)
Silent Mode Yes (Fanless / air cooling silent operation)
Smart Charging Yes (Simultaneous charge & discharge)

Physical

3 Specs
Dimensions 178 × 158 × 38 mm
Weight Approx. 300–400g
Material ABS Plastic

Warranty & Support

1 Spec
Warranty 1 Year Official Warranty
