Management Ports
- 1*10/100BASE-T out-band AUX port,
- 1*CONSOLE port
PON Port Specification
- Transmission Distance: 20KM
- EPON Port Speed Symmetrical 1.25Gbps
- Wavelength: TX 1490nm, RX 1310nm
- Connector: SC/UPC
- Fiber Type: 9/125μm SMF
- TX Power: +4.5dBm~+9dBm
- Rx Sensitivity: -32dBm
- Saturation Optical Power: -8dBm
Management Mode
- SNMP/Telnet/CLI/WEB/SSH v2
Management Function
- Fan Group Control;
- Port Status monitoring and configuration management;
- Online ONU configuration and management;
- User management, Alarm management
Layer 2 Feature
- 16K MAC address
- Support port VLAN and protocol VLAN
- Support 4096 VLANs
- Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
- Support IEEE802.3d trunk
- Support RSTP, MSTP
- QoS based on port, VID, TOS and MAC address
- IEEE802.x flow control
Multicast
- IGMP snooping
- 256 IP Multicast Groups
DHCP Functions
- DHCP server
- DHCP relay
- DHCP snooping
Layer 3 Features
- ARP proxy
- Static route
- 1024 hardware Host Routes
- 512 hardware Subnet Routes
- Support RIPv1/v2, OSPFv2/v3
- Support PPPoE/PPPoE+

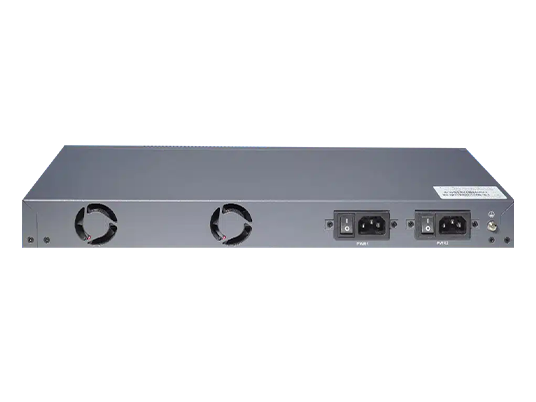

Solitine SOL1004-DP EPON OLT product 1U height 19 inch rack mount. The features of the OLT are small, convenient, flexible, easy todeploy and high performance. It is appropriate to be deployed in compact room
environment. The OLT's can be used for "Triple-Play", VPN, IP Camera, Enterprise LAN and Internet service provider
applications.
SOL1004-DP provides 4GE (Copper) RJ45 and 4x 1GE/ 10GE SFP slots independent interface for uplink, and
4xEPON OLT ports for downlink. It can support overall 256 ONU's with 64 ONU's per PON port
