Specification
- Model: SOL-604
- Rated Working Voltage: 12V2A
- Maximum Output Power: 24W
- USB/DC Interface 1: 5V USB
- DC Interface 3: 9V/9V 12V2A
- Unit Dimensions: 199 x 113 x 51mm
- Battery Specifications: 18650 Lithium Battery
- Capacity Of Battery : 10000mAh
- Product Color: White
- Port : Type C
- Auto Start When Plugged In
- Overload & Short-Circuit Protection
- Overcharge & Over-Discharge Protection
- Microprocessor Controlled System

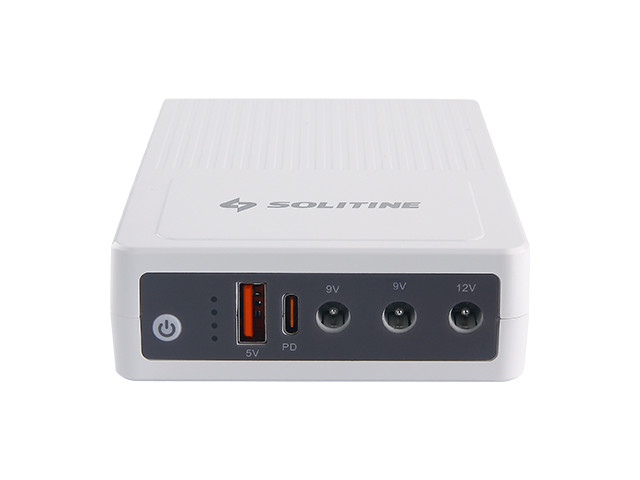

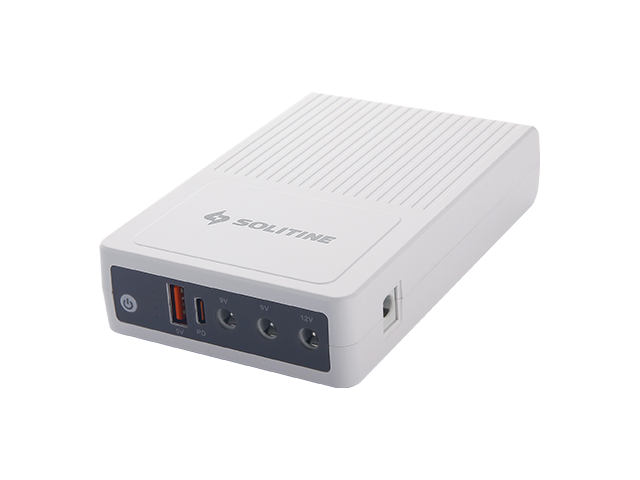

The MINI DC UPS is a powerful and efficient backup power unit designed to provide uninterrupted power to your essential electronic devices. With a built-in lithium battery and microprocessor-controlled system, it offers advanced protection and superior performance for a wide range of applications.
This versatile UPS supports a wide input voltage range (90-264Vac, 50-60Hz) and delivers a maximum output power of 24W, making it suitable for powering routers, IP cameras, biometric systems, POS devices, and small switches. It comes equipped with multiple output interfaces, including 5V USB (2.4A), 9V/12V DC (2A), and 15V/24V POE (1.5A/1A) — allowing you to power multiple types of devices simultaneously.
Safety and reliability are at the core of the MINI DC UPS. It features overload, short-circuit, overcharge, and over-discharge protection, ensuring safe and stable power delivery. The auto start function ensures immediate operation when plugged in, minimizing downtime during power interruptions.
