Specification
- Model: SOL-702
- Rated Working Voltage: AC 100-240V 50Hz 0.4A MAX
- Maximum Output Power: 36W
- USB/DC Interface 1: 5V USB
- DC Interface 5: 5V/9V/9V/12V/12V DC
- Output Power & Current (USB/DC Interface 1): 5V3A
- Output Power & Current (DC Interface 5): 5V3A/9V2A/12V2A
- Unit Dimension : 178 x 173 x 42mm
- Battery Specifications : 21700 Lithium Battery
- Capacity of Battery : 12000mAh
- Product Color : White
- Port : Type C
- Auto Start When Plugged In
- Overload and Short-Circuit Protection
- Overcharge and Over-Discharge Protection
- Microprocessor Controlled

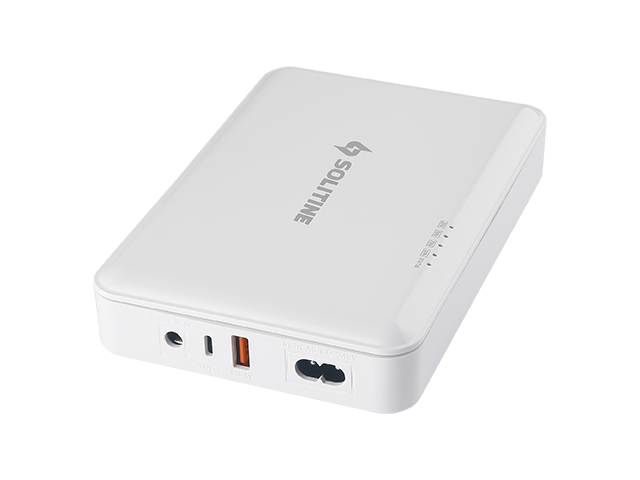

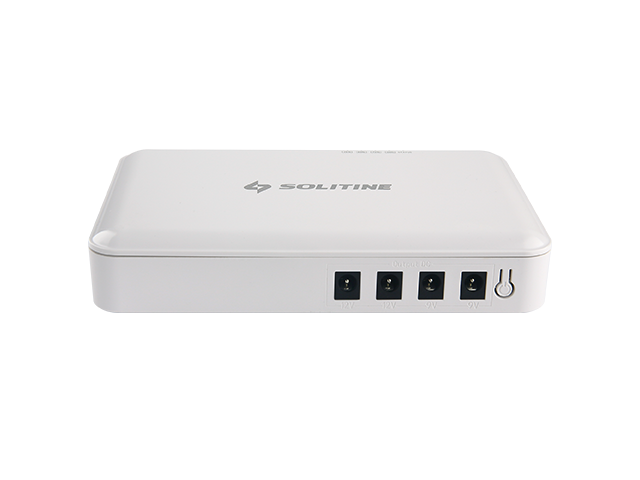

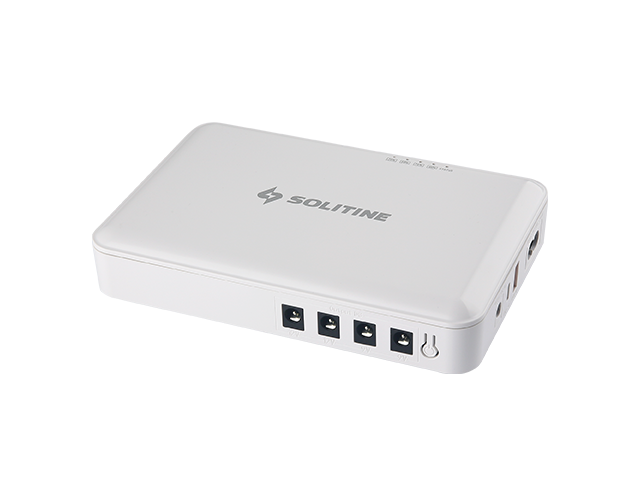

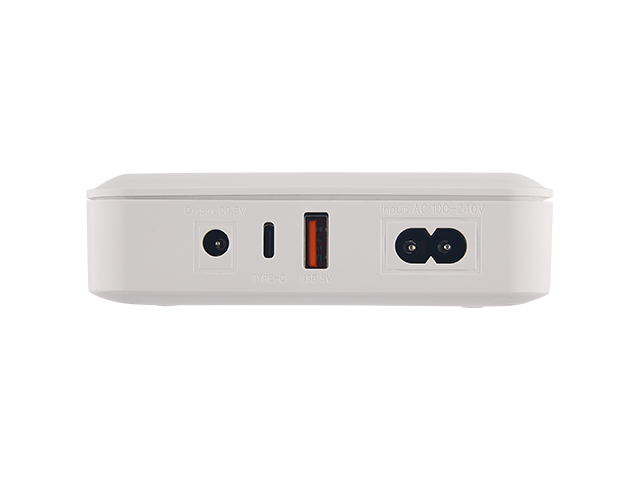

The MINI DC UPS is a highly efficient, multi-purpose uninterruptible power supply designed for modern low-voltage electronics. It’s equipped with a built-in lithium battery and a microprocessor-controlled system, offering dependable backup power with enhanced safety features. Its sleek and compact size (178 x 158 x 38 mm) makes it easy to install in both home and office environments.
Compatible with a wide input range of 90-264Vac (50-60Hz), the unit ensures a seamless power supply during outages. The output power capacity of 24W is sufficient to support devices like routers, modems, IP cameras, biometric attendance systems, and small network switches.
With selectable output voltages (5V, 9V, 12V, 15V, and 24V), and multiple interfaces including USB (5V/2.4A), DC (9V/12V) this UPS offers incredible flexibility.
